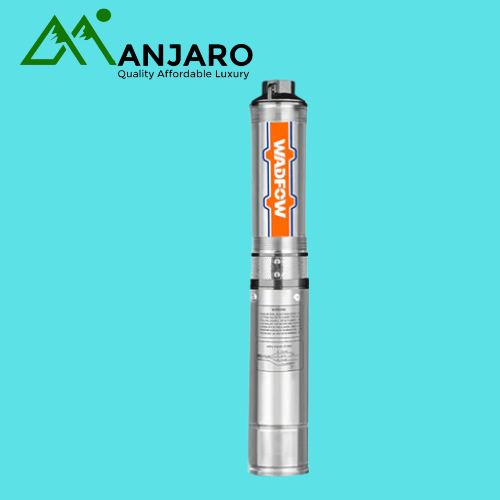

WWPDA03 & WWPDA04 4" Deep Well Pumps

The WWPDA03 and WWPDA04 4" deep well pumps are designed for efficient and reliable water extraction from wells, ideal for residential, agricultural, and commercial applications. Constructed with durable stainless steel pump bodies and copper wire motors, these pumps provide long-lasting performance under continuous operation. Multi-stage impellers deliver optimized flow and pressure, achieving maximum heads of 72m and 100m respectively, with a consistent flow rate of 5.0m³/h. Both models feature built-in capacitance, cast iron inlet and outlet ports, and robust oil chambers for stable operation. Each pump includes a 15m cable for easy installation and ready-to-use setup.

Key Features

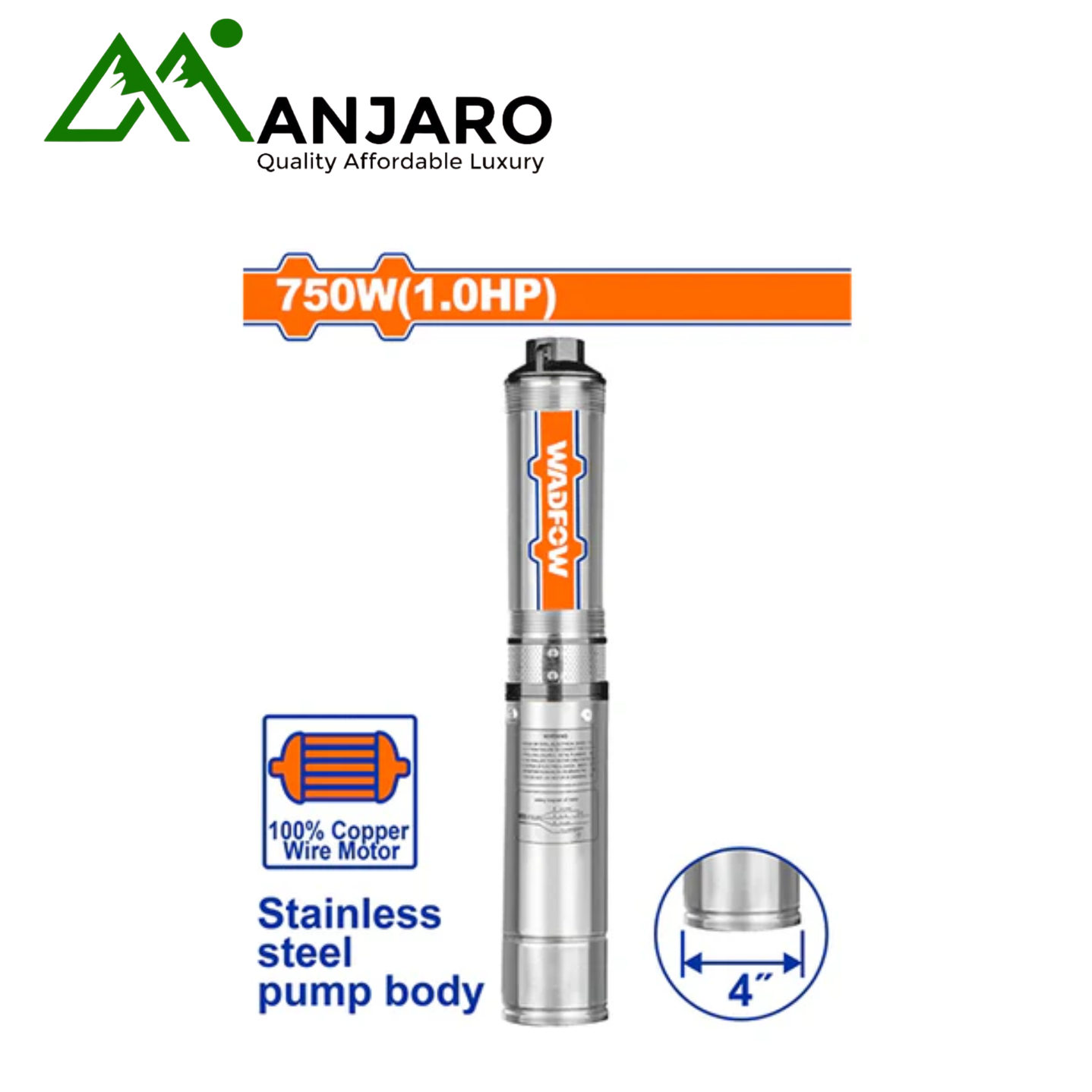

WWPDA03

• Voltage: 220-240V~50Hz

• Rated Power: 750W (1.0HP)

• Max Head: 72m

• Max Flow: 5.0m³/h

• Pipe Diameter: 1-1/4"

• Well Pump Body: 4"

• Impeller: 10-stage

• Copper Wire Motor

• Stainless Steel Pump Body

• 15m Cable

• Built-in Capacitance

• Cast Iron Inlet & Outlet Ports

• Cast Iron Oil Chamber

• Packed by Carton Box

WWPDA04

• Voltage: 220-240V~50Hz

• Rated Power: 1100W (1.5HP)

• Max Head: 100m

• Max Flow: 5.0m³/h

• Pipe Diameter: 1-1/4"

• Well Pump Body: 4"

• Impeller: 13-stage

• Copper Wire Motor

• Stainless Steel Pump Body

• 15m Cable

• Built-in Capacitance

• Cast Iron Inlet & Outlet Ports

• Cast Iron Oil Chamber

• Packed by Carton Box
